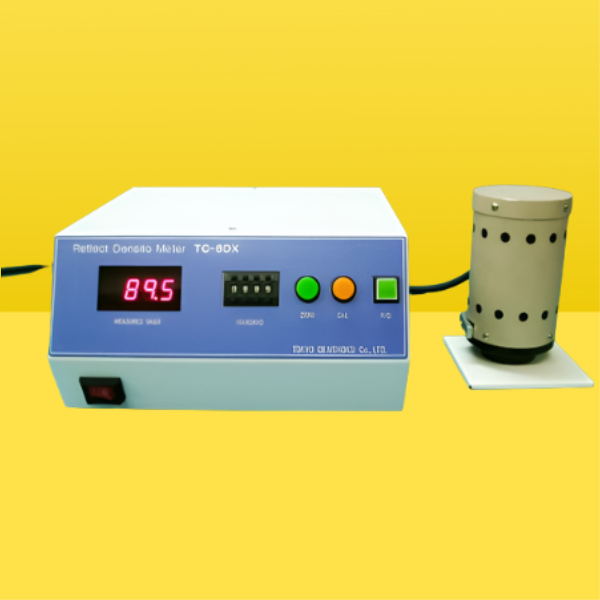

TC-6DXเครื่องวัดความขาวแบบโฟโตมิเตอร์ White photometer

High accuracy, convenience and one-touch operation of the whiteness meter.
This instrument is a whiteness meter developed and manufactured based on JIS Z 8722, which can achieve accurate measurement through simple operation.
The measurement part adopts a photovoltage scheme of 0° - 45°.
We reduced the size and weight of the conventional TC-6D/TC-6DS/A and improved instrument visibility and switch operability.

※Appearance and color are subject to change without prior notice.

[Specifications of the instrument]
Detector: Sensor unit........................................ ....... 1 unit
measurement part: digital display (auto color) operation switch (push-button type) ............ 1
measurement method: based on JIS Z 8722, passed Standard light C viewing angle 2° measurement Whiteness
measurement area: 20mmφ
Measurement conditions: diffuse illumination → 0°-45° method
Operation switch: ZERO, CAL, R/D, standard value setting
Working voltage: AC 100 - 220 V 50/ 60 Hz
Temperature and humidity conditions: 15 to 30°C 20 to 80%
Light source: Tungsten lamp 12V 10W
Detection element: Silicon photodiode
Accessories: 1 standard whiteboard, 1 blackboard, 1 instruction manual
Sensor unit diameter: φ80mm
Main body: Width 257 mm × Depth 250 mm × Height 140 mm
